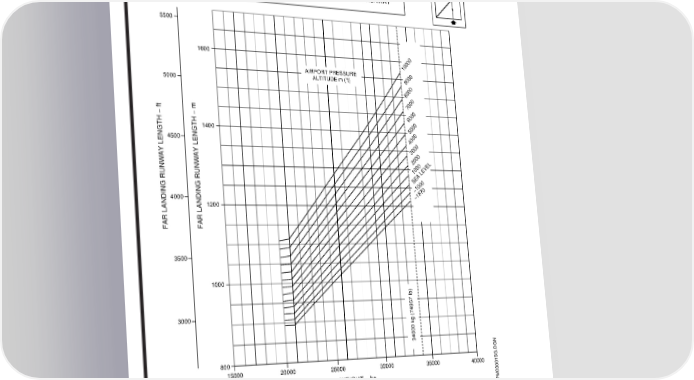

AIRPORT PLANNING MANUAL LANDING FIELD LENGTH FLAPS FULL DRY, SMOOTH, HARD PAVED AND LEVELLED RUNWAY 5500 1600 10000 AIRPORT PRESSURE 5000 ALTITUDE m (ft) 9000 8000 7000 6000 1400 5000 4500 4000 3000 2000 1000 SEA LEVEL −1000 4000 −1870 1200 FAR LANDING RUNWAY LENGTH − ftFAR LANDING RUNWAY LENGTH − m 3500 1000 3000 34000 kg (74957 lb) 800 15000 20000 25000 30000 35000 40000 WEIGHT − kg 35000 40000 45000 50000 55000 60000 65000 70000 75000 80000 85000 WEIGHT − lb EM170APM030015G.DGN Landing Field Lengths - Flaps Full Figure 3.14 EFFECTIVITY: FAA-CERTIFIED ACFT Section 3 Page 3-18 Oct 31/12 w-apm1346
