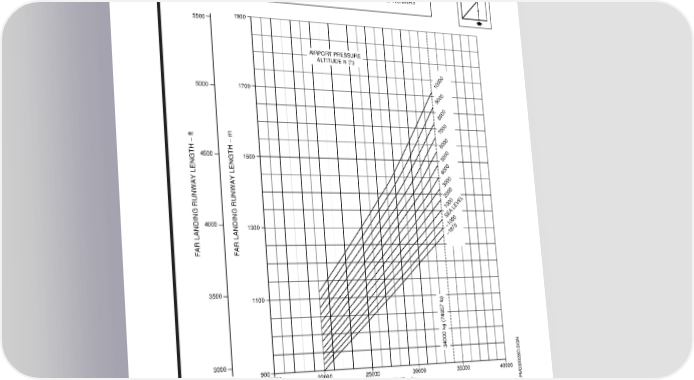

AIRPORT PLANNING MANUAL LANDING FIELD LENGTH FLAP 5 DRY, SMOOTH, HARD PAVED AND LEVELLED RUNWAY 5500 1900 AIRPORT PRESSURE ALTITUDE m (ft) 10000 5000 1700 9000 8000 7000 6000 4500 1500 5000 4000 3000 2000 1000 SEA LEVEL 4000 1300 −1000 −1870 FAR LANDING RUNWAY LENGTH − ftFAR LANDING RUNWAY LENGTH − m 3500 1100 34000 kg (74957 lb) 3000 900 20000 30000 35000 15000 25000 40000 WEIGHT − kg 35000 40000 45000 50000 55000 60000 65000 70000 75000 WEIGHT − lb EM170APM030028D.DGN Landing Field Lengths - Flaps 5 Figure 3.15 EFFECTIVITY: EASA-CERTIFIEDACFT Section 3 Page 3-19 Oct 31/12 w-apm1346
