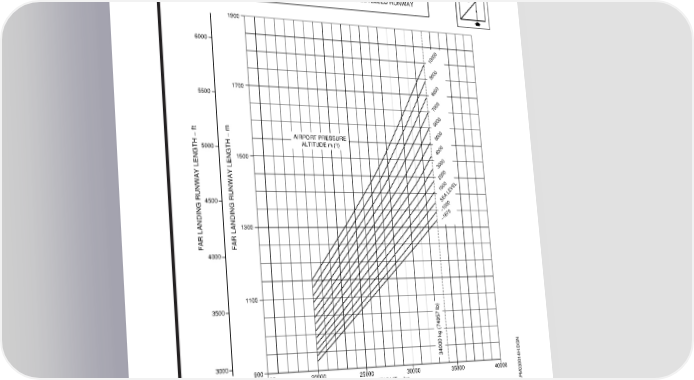

AIRPORT PLANNING MANUAL LANDING FIELD LENGTH FLAP 5 DRY, SMOOTH, HARD PAVED AND LEVELLED RUNWAY 1900 6000 10000 9000 1700 8000 5500 7000 6000 AIRPORT PRESSURE 5000 5000 ALTITUDE m (ft) 4000 1500 3000 2000 1000 4500 SEA LEVEL −1000 −1870 1300 FAR LANDING RUNWAY LENGTH − ftFAR LANDING RUNWAY LENGTH − m 4000 1100 3500 3000 34000 kg (74957 lb) 900 20000 30000 35000 15000 25000 40000 WEIGHT − kgWEIGHT − kg 35000 40000 45000 50000 55000 60000 65000 70000 75000 80000 85000 WEIGHT − lb EM170APM030014H.DGN Landing Field Lengths - Flaps 5 Figure 3.13 EFFECTIVITY: FAA-CERTIFIED ACFT Section 3 Page 3-17 Oct 31/12 w-apm1346
