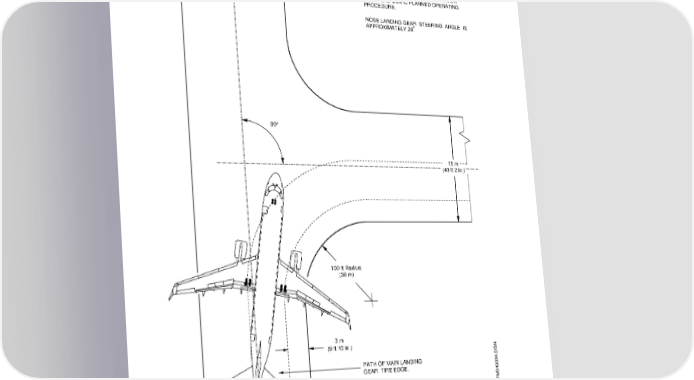

AIRPORT PLANNING MANUAL 15 m NOTE: (49 ft 2 in.) COORDINATE WITH AIRLINE OPERATOR FOR THE SPECIFIC PLANNED OPERATING PROCEDURE. NOSE LANDING GEAR STEERING ANGLE IS APPROXIMATELY 28. 90° 15 m (49 ft 2 in.) 100 ft Radius (30 m) 3 m (9 ft 10 in.) PATH OF MAIN LANDING GEAR TIRE EDGE. EM170APM040004.DGN 90° Turn - Taxiway to Taxiway Figure 4.6 EFFECTIVITY: ALL Section 4 Page 4-8 Dec08/03 b-apm1346
