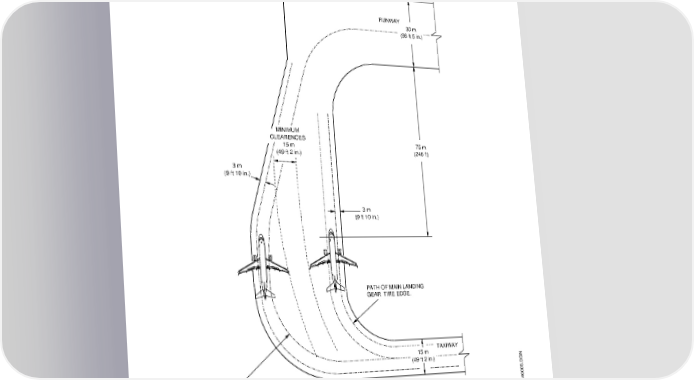

AIRPORT PLANNING MANUAL 4.6. RUNWAYHOLDINGBAY RUNWAY 30 m (98 ft 5 in.) MINIMUM CLEARENCES 75 m 15 m (246 ft) (49 ft 2 in.) 3 m (9 ft 10 in.) 3 m (9 ft 10 in.) PATH OF MAIN LANDING GEAR TIRE EDGE. 15 m TAXIWAY (49 ft 2 in.) PATH OF MAIN LANDING GEAR TIRE EDGE. EM170APM040005.DGN Runway Holding Bay Figure 4.7 EFFECTIVITY: ALL Section 4 Page 4-9 / 10 Dec08/03 b-apm1346
