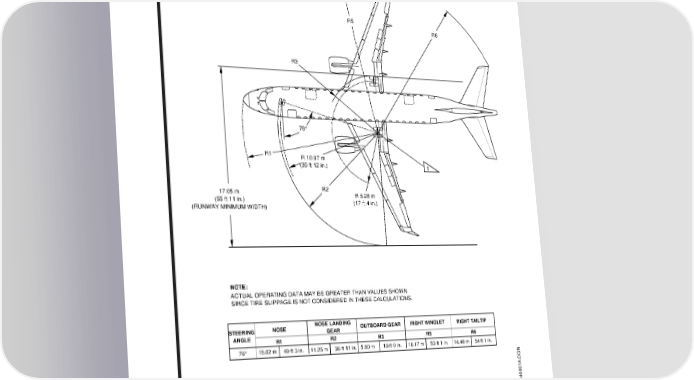

AIRPORT PLANNING MANUAL 4.3. MINIMUM TURNING RADII R5 R6 R3 76° R1 R 10.97 m (35 ft 12 in.) 1 17.05 m R2 (55 ft 11 in.) R 5.28 m (RUNWAY MINIMUM WIDTH) (17 ft 4 in.) NOTE: ACTUAL OPERATING DATA MAY BE GREATER THAN VALUES SHOWN SINCE TIRE SLIPPAGE IS NOT CONSIDERED IN THESE CALCULATIONS. STEERING NOSE NOSE LANDING OUTBOARD GEAR RIGHT WINGLET RIGHT TAILTIP ANGLE GEAR R1 R2 R3 R5 R6 76° 15.02 m 49 ft 3 in. 11.25 m 36 ft 11 in. 5.80 m 19 ft 0 in. 16.17 m 53 ft 1 in. 16.48 m 54 ft 1 in. 1 THEORETICAL CENTER OF TURN FOR MINIMUN RADIUS. SHOWS CONTINUOUS TURNING WITH ENGINE THRUST AS REQUIRED. NO DIFFERENTIAL BRAKING. EM170APM040001A.DGN Minimum Turning Radius Figure 4.2 EFFECTIVITY: ALL Section 4 Page 4-3 Oct 07/08 w-apm1346
