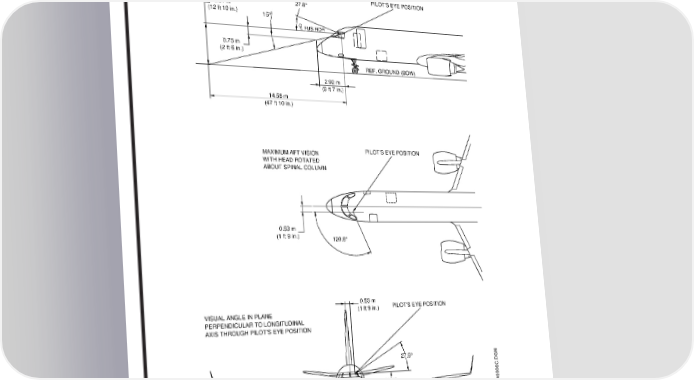

AIRPORT PLANNING MANUAL 4.4. VISIBILITY FROM COCKPIT VISUAL ANGLE IN PLANE PARALLEL TO LONGITUDINAL AXIS THROUGH PILOT’S EYE POSITION PILOT’S EYE POSITION 3.91 m 27.8° (12 ft 10 in.) 15° C L FUS HOR 0.75 m (2 ft 6 in.) REF. GROUND (BOW) 2.92 m (9 ft 7 in.) 14.58 m (47 ft 10 in.) MAXIMUM AFT VISION PILOT’S EYE POSITION WITH HEAD ROTATED ABOUT SPINAL COLUMN 0.53 m (1 ft 9 in.) 120.6° 0.53 m PILOT’S EYE POSITION VISUAL ANGLE IN PLANE (1 ft 9 in.) PERPENDICULAR TO LONGITUDINAL AXIS THROUGH PILOT’S EYE POSITION 27.5° 28.1° EM170APM040006C.DGN Visibility from Cockpit in Static Position Figure 4.3 EFFECTIVITY: ALL Section 4 Page 4-4 Jul 01/05 w-apm1346
