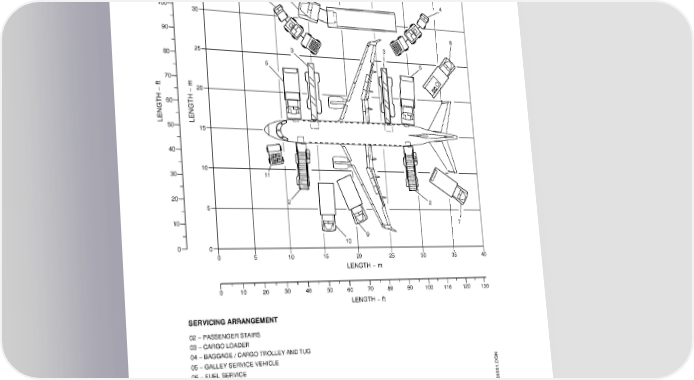

AIRPORT PLANNING MANUAL 5.1. AIRCRAFT SERVICINGARRANGEMENT 35 110 4 6 4 100 30 8 90 3 3 80 25 5 5 70 20 60 LENGTH − ft50LENGTH − m 15 40 10 11 30 20 2 2 5 10 7 9 10 0 0 05 15 20 25 30 35 40 10 LENGTH − m 010 30 40 50 70 80 90 100 120 20 60 110 130 LENGTH − ft SERVICING ARRANGEMENT 02 − PASSENGER STAIRS 03 − CARGO LOADER 04 − BAGGAGE / CARGO TROLLEY AND TUG 05 − GALLEY SERVICE VEHICLE 06 − FUEL SERVICE 07 − POTABLE WATER 08 − LAVATORY SERVICE VEHICLE 09 − AIR CONDITIONING UNIT 10 − PNEUMATIC STARTER 11 − GROUND POWER UNIT EM170APM050001.DGN Aircraft Servicing Arrangement With Passenger Stairs Figure 5.1 EFFECTIVITY: ALL Section 5 Page 5-2 Dec08/03 b-apm1346
