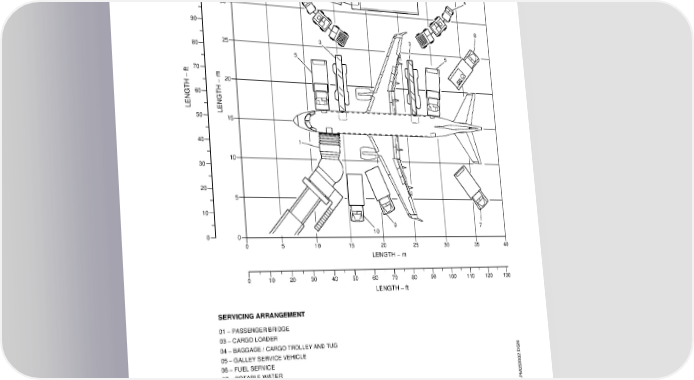

AIRPORT PLANNING MANUAL 35 110 6 4 4 100 30 8 90 3 3 80 25 5 5 70 20 60 LENGTH − ftLENGTH − m 50 15 40 1 10 30 20 5 10 9 7 0 0 10 15 20 35 0510 25 30 40 LENGTH − m 010 30 40 50 60 90 20 70 80 100 110 120 130 LENGTH − ft SERVICING ARRANGEMENT 01 − PASSENGER BRIDGE 03 − CARGO LOADER 04 − BAGGAGE / CARGO TROLLEY AND TUG 05 − GALLEY SERVICE VEHICLE 06 − FUEL SERVICE 07 − POTABLE WATER 08 − LAVATORY SERVICE VEHICLE 09 − AIR CONDITIONING UNIT 10 − PNEUMATIC STARTER EM170APM050002.DGN Aircraft Servicing Arrangement With Passenger Bridge Figure 5.2 EFFECTIVITY: ALL Section 5 Page 5-3 Dec08/03 b-apm1346
