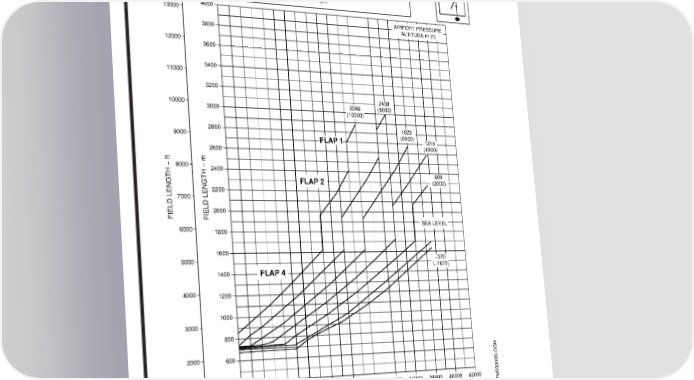

AIRPORT PLANNING MANUAL TAKEOFF FIELD LENGTH CF 34−8E5A1 ENGINE@T/O−1 MODE ATTCS: ON / ECS: OFF DRY, SMOOTH, HARD PAVED AND LEVEL RUNWAY ISA 13000 4000 AIRPORT PRESSURE ALTITUDE m (ft) 3800 12000 3600 11000 3400 3200 2438 10000 3000 3048 (8000) (10000) 2800 1829 9000 FLAP 1 (6000) 1219 2600 (4000) 8000 2400 609 FLAP 2 (2000) 2200 7000 FIELD LENGTH − ft2000 FIELD LENGTH − m SEA LEVEL 6000 1800 1600 5000 −570 (−1870) 1400 FLAP 4FLAP 4 4000 1200 1000 3000 800 2000 600 400 20000 22000 24000 26000 28000 30000 32000 34000 36000 38000 40000 42000 WEIGHT − kg 45000 49000 53000 57000 61000 65000 69000 73000 77000 81000 85000 89000 93000 EM170APM030005I.DGN WEIGHT − lb Takeoff Field Lengths - ISA Conditions Figure 3.9 EFFECTIVITY: ALL Section 3 Page 3-12 Oct 07/14 w-apm1346
