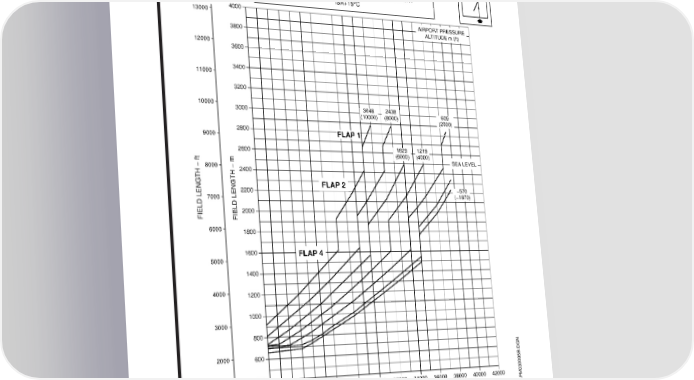

AIRPORT PLANNING MANUAL TAKEOFF FIELD LENGTH CF 34−8E5 ENGINE@T/O−1 MODE ATTCS: OFF / ECS: OFF DRY, SMOOTH, HARD PAVED AND LEVEL RUNWAY ISA+15°C 13000 4000 AIRPORT PRESSURE 3800 ALTITUDE m (ft) 12000 3600 11000 3400 3200 10000 3000 3048 2438 609 (10000) (8000) (2000) 9000 2800 FLAP 1 2600 1829 1219 (6000) (4000) SEA LEVEL 8000 2400 2200 FLAP 2 −570 7000 (−1870) FIELD LENGTH − ft2000 FIELD LENGTH − m 6000 1800 1600 FLAP 4FLAP 4 5000 1400 4000 1200 1000 3000 800 2000 600 400 20000 22000 24000 26000 28000 30000 32000 34000 36000 38000 40000 42000 WEIGHT − kg 45000 49000 53000 57000 61000 65000 69000 73000 77000 81000 85000 89000 93000 EM170APM030095B.DGN WEIGHT − lb Takeoff Field Lengths - ISA + 15 °C Conditions Figure 3.8 EFFECTIVITY: ALL Section 3 Page 3-11 Oct 07/14 w-apm1346
