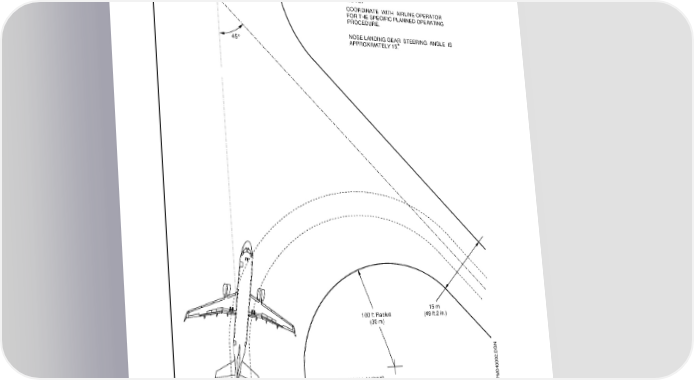

AIRPORT PLANNING MANUAL 30 m (98 ft 5 in.) NOTE: COORDINATE WITH AIRLINE OPERATOR FOR THE SPECIFIC PLANNED OPERATING PROCEDURE. NOSE LANDING GEAR STEERING ANGLE IS 45° APPROXIMATELY 15. 15 m 100 ft Radius (49 ft 2 in.) (30 m) PATH OF MAIN LANDING GEAR TIRE EDGE EM170APM040002.DGN More than 90° Turn - Runway to Taxiway Figure 4.4 EFFECTIVITY: ALL Section 4 Page 4-6 Dec08/03 b-apm1346
