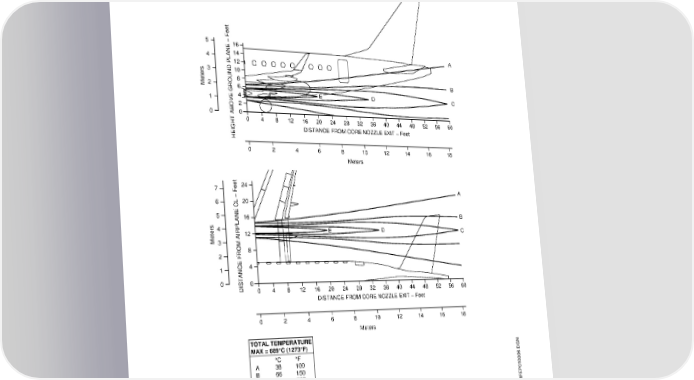

AIRPORT PLANNING MANUAL TAKEOFF POWER, SEA LEVEL, Tamb = ISA +16.7°C, FNIN1 = 63685 N (14317 lbf) 5 16 4 14 A 12 3 10 8 B Meters2 6 1 4 E D C 2 0 0 04812162024283236404448525660 DISTANCE FROM CORE NOZZLE EXIT − Feet HEIGHT ABOVE GROUND PLANE − Feet 6 024 81012141618 Meters 7 24 A 6 20 5 16 B 4 12 E D C Meters3 2 8 1 4 0 0 DISTANCE FROM AIRPLANE CL − Feet04812162024283236404448525660 DISTANCE FROM CORE NOZZLE EXIT − Feet 024681012141618 Meters TOTAL TEMPERATURE MAX = 689°C (1273°F) °C °F A 38 100 B 66 150 C 93 200 D 204 400 E 582 900 NOTE: EXHAUST TEMPERATURE CONTOURS INCLUDE WORST CASE 20 kn HEADWIND. EM170MFEP010006.DGN Jet Wake Temperature Profile - Takeoff Power Figure 6.2 EFFECTIVITY: ALL Section 6 Page 6-3 Dec08/03 b-apm1346
