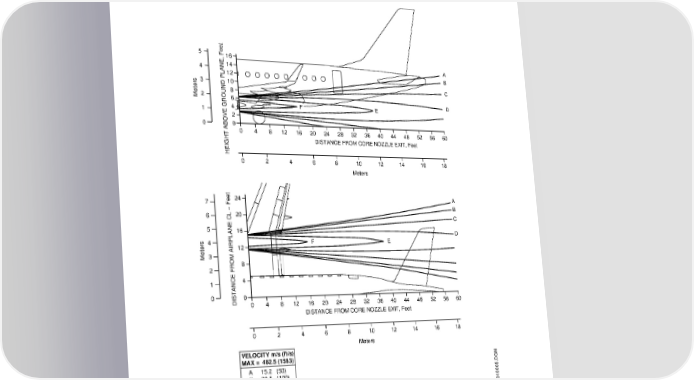

AIRPORT PLANNING MANUAL 6.1. ENGINE EXHAUST VELOCITIES AND TEMPERATURES TAKEOFF POWER, SEA LEVEL, Tamb = ISA +16.7°C, FNIN1 = 63685 N (14317 lbf) 5 16 14 A 4 12 B 3 10 C 2 8 Meters 6 D 1 4 F E 2 0 0 04812162024283236404448525660 DISTANCE FROM CORE NOZZLE EXIT, Feet HEIGHT ABOVE GROUND PLANE, Feet 024681012141618 Meters 7 24 A B 6 20 C 5 16 D 4 12 F E Meters3 2 8 1 4 0 DISTANCE FROM AIRPLANE CL − Feet0 04812162024283236404448525660 DISTANCE FROM CORE NOZZLE EXIT, Feet 024681012141618 Meters VELOCITY m/s (ft/s) MAX = 482.5 (1583) A 15.2 (50) B 30.5 (100) C 60.9 (200) D 121.9 (400) E 243.8 (800) F 457.2 (1500) NOTE: EXHAUST VELOCITY CONTOURS INCLUDE WORST CASE 20 kn HEADWIND WITH GROUND EFFECTS. EM170MFEP010005.DGN Jet Wake Velocity Profile - Takeoff Power Figure 6.1 EFFECTIVITY: ALL Section 6 Page 6-2 Dec08/03 b-apm1346
