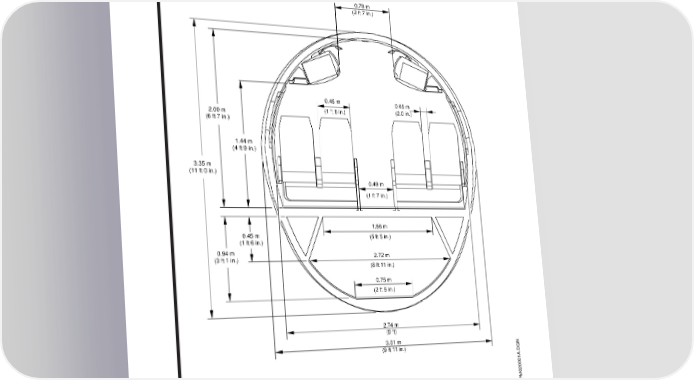

AIRPORT PLANNING MANUAL 2.5. PASSENGERCABINCROSSSECTION 0.78 m (2 ft 7 in.) 0.46 m 0.05 m 2.00 m (1 ft 6 in.) (2.0 in.) (6 ft 7 in.) 1.44 m (4 ft 9 in.) 3.35 m (11 ft 0 in.) 0.49 m (1 ft 7 in.) 1.66 m 0.45 m (5 ft 5 in.) (1 ft 6 in.) 0.94 m 2.72 m (3 ft 1 in.) (8 ft 11 in.) 0.75 m (2 ft 5 in.) 2.74 m (9 ft) 3.01 m (9 ft 11 in.) EM170APM020001A.DGN Economy Class Passenger Cabin Cross-Section Figure 2.4 EFFECTIVITY: ALL Section 2 Page 2-11 Dec18/04 w-apm1346
