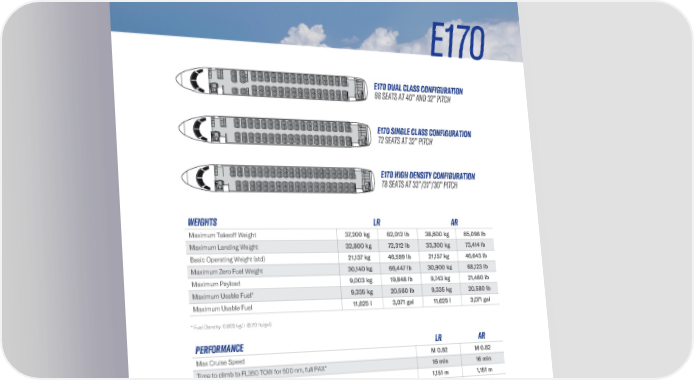

E170 E170 DUAL CLASS CONFIGURATION 66 SEATS AT 40” AND 32” PITCH E170 SINGLE CLASS CONFIGURATION 72 SEATS AT 32” PITCH E170 HIGH DENSITY CONFIGURATION 78 SEATS AT 33”/31”/30” PITCH WEIGHTS LR AR Maximum Takeoff Weight 37,200 kg 82,012 lb 38,600 kg 85,098 lb Maximum Landing Weight 32,800 kg 72,312 lb 33,300 kg 73,414 lb Basic Operating Weight (std) 21,137 kg 46,599 lb 21,157 kg 46,643 lb Maximum Zero Fuel Weight 30,140 kg 66,447 lb 30,900 kg 68,123 lb Maximum Payload 9,003 kg 19,848 lb 9,743 kg 21,480 lb Maximum Usable Fuel* 9,335 kg 20,580 lb 9,335 kg 20,580 lb Maximum Usable Fuel 11,625 l 3,071 gal 11,625 l 3,071 gal * Fuel Density: 0.803 kg/l (6.70 lb/gal) PERFORMANCE LR AR Max Cruise Speed M 0.82 M 0.82 Time to climb to FL350 TOW for 500 nm, full PAX* 16 min 16 min 1,151 m 1,151 m Takeoff Field Length TOW for 500nm, full PAX*, ISA, SL, E5 engines 3,776 ft 3,776 ft Takeoff Field Length MTOW, ISA, SL - E5 engines for LR; E5A1 engines for AR version 1,582 m 1,644 m 5,190 ft 5,394 ft 1,228 m 1,241 m Landing Field Length MLW, ISA, SL 4,029 ft 4,072 ft Service Ceiling 41,000 ft 41,000 ft 2,100 nm 2,150 nm Range Full PAX*, LRC, typical mission reserves 3,889 km 3,982 km * Single-class seating at 32” pitch; Passengers at 100 kg (220 lb)
