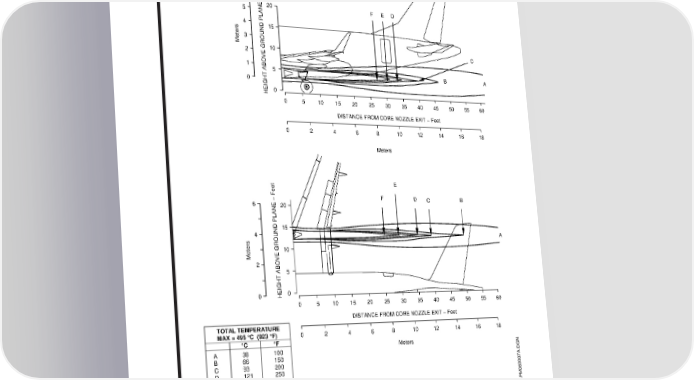

AIRPORT PLANNING MANUAL 6 5 20 FED 4 15 3 Meters 10 C 2 1 5 BA 0 HEIGHT ABOVE GROUND PLANE − Feet0 5 10 15 20 25 30 35 40 45 50 55 60 0 DISTANCE FROM CORE NOZZLE EXIT − Feet 0 2 4 6 8 10 12 14 16 18 Meters E F D C B 6 20 15 4 A 10 Meters 2 5 0 HEIGHT ABOVE GROUND PLANE − Feet0 0 5 10 15 20 25 30 35 40 45 50 55 60 DISTANCE FROM CORE NOZZLE EXIT − Feet TOTAL TEMPERATURE MAX = 495 °C (923 °F) 0 2 4 6 8 10 12 14 16 18 °C °F Meters A 38 100 B 66 150 C 93 200 D 121 250 E 149 300 F 177 350 NOTE: EXHAUST TEMPERATURE CONTOURS INCLUDE WORST CASE 20 kn HEADWIND WITH GROUND EFFECTS. EM170APM060007A.DGN Jet Wake Temperature Profile - Breakaway Power Figure 6.6 EFFECTIVITY: ALL Section 6 Page 6-7 Jan 09/06 w-apm1346
