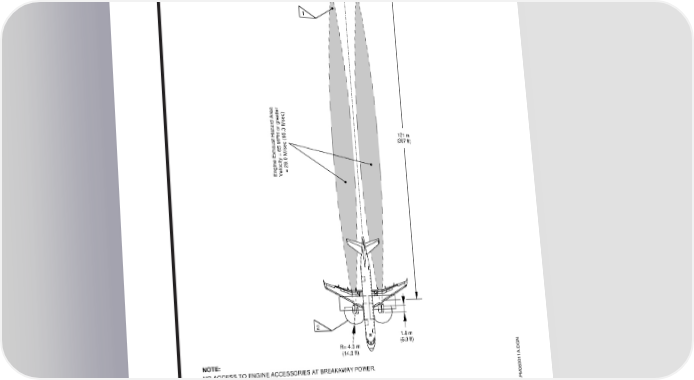

AIRPORT PLANNING MANUAL BREAKAWAY POWER, SEA LEVEL, Tamb = ISA +16.7° C, FNIN1 = 2328 DAN (5233 lbf) 1 121 m (397 ft) Engine Exhaust Hazard AreaVelocity = 65 MPH or greater= 29.0 M/sec (95.3 ft/sec) 2 1.8 m R= 4.3 m (6.0 ft) (14.0 ft) NOTE: NO ACCESS TO ENGINE ACCESSORIES AT BREAKAWAY POWER. 1 EXHAUST HAZARD AREA − CONDITION: 20 knot HEADWIND WITH GROUND EFFECTS. 2 INLET HAZARD AREA − CONDITION: 20 knot HEADWIND/CROSSWIND BASED ON 40 ft/sec CRITICAL VELOCITY WITH 0.9 m (3 ft) CONTINGENCY FACTOR. EM170APM060011A.DGN Hazard Areas - Breakaway Power Figure 6.9 EFFECTIVITY: ALL Section 6 Page 6-11 / 12 Oct 07/10 w-apm1346
