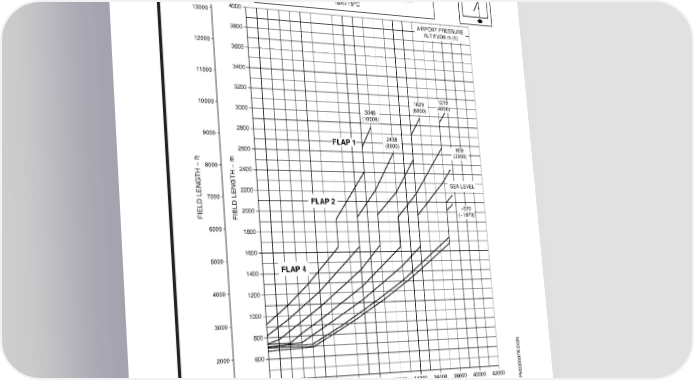

AIRPORT PLANNING MANUAL TAKEOFF FIELD LENGTH CF 34−8E5A1 ENGINE@T/O−1 MODE ATTCS: OFF / ECS: OFF DRY, SMOOTH, HARD PAVED AND LEVEL RUNWAY ISA+15°C 13000 4000 AIRPORT PRESSURE ALTITUDE m (ft) 3800 12000 3600 11000 3400 3200 1219 1829 (4000) 10000 3000 3048 (6000) (10000) 9000 2800 FLAP 1 2438 (8000) 609 2600 (2000) 8000 2400 SEA LEVEL 2200 7000 FLAP 2 2000 −570 FIELD LENGTH − ftFIELD LENGTH − m (−1870) 6000 1800 1600 5000 1400 FLAP 4FLAP 4 4000 1200 1000 3000 800 2000 600 400 20000 22000 24000 26000 28000 30000 32000 34000 36000 38000 40000 42000 WEIGHT − kg 45000 49000 53000 57000 61000 65000 69000 73000 77000 81000 85000 89000 93000 WEIGHT − lb EM170APM030097B.DGN Takeoff Field Lengths - ISA + 15 °C Conditions Figure 3.12 EFFECTIVITY: ALL Section 3 Page 3-15 Oct 07/14 w-apm1346
