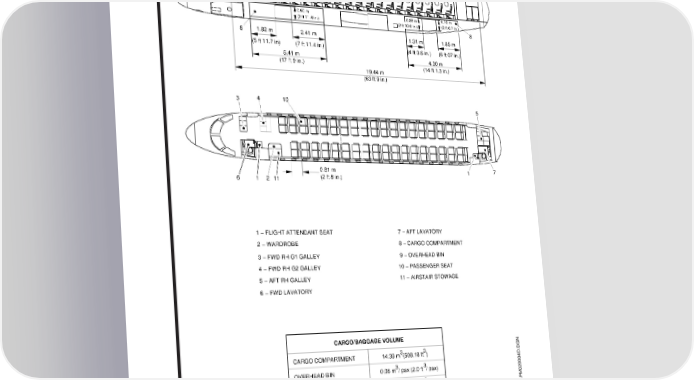

AIRPORT PLANNING MANUAL 4 9 5 3 0.90 m 0.88 m 0.78 m (2 ft 11.4 in.) (2 ft 10.6 in.) (2 ft 6.7 in.) 8 8 1.82 m 2.41 m 1.31 m 1.85 m (5 ft 11.7 in) (7 ft 11.4 in.) (4 ft 3.6 in.) (6 ft 07 in.) 5.41 m 4.30 m (17 ft 9 in.) (14 ft 1.3 in.) 19.44 m (63 ft 9 in.) 3 410 5 0.81 m 1 7 61211 (2 ft 8 in.) 1 − FLIGHT ATTENDANT SEAT 7 − AFT LAVATORY 2 − WARDROBE 8 − CARGO COMPARTMENT 3 − FWD RH G1 GALLEY 9 − OVERHEAD BIN 4 − FWD RH G2 GALLEY 10 − PASSENGER SEAT 5 − AFT RH GALLEY 11 − AIRSTAIR STOWAGE 6 − FWD LAVATORY CARGO/BAGGAGE VOLUME 3 3 CARGO COMPARTMENT 14.39 m (508.18 ft ) 3 3 OVERHEAD BIN 0.06 m / pax (2.0 ft / pax) 3 3 UNDERSEAT VOLUME 0.04 m / pax (1.4 ft / pax) EM170APM020004D.DGN Typical Interior Arrangements Figure 2.3 EFFECTIVITY: ALL Section 2 Page 2-9 Oct 09/15 w-apm1346
