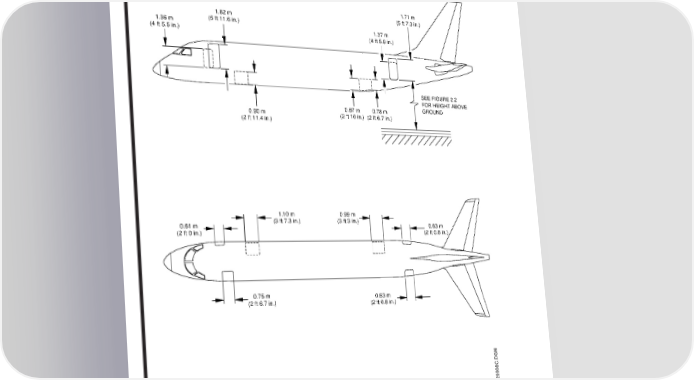

AIRPORT PLANNING MANUAL 2.7. DOORCLEARANCES 1.71 m 1.82 m (5 ft 7.3 in.) 1.36 m (5 ft 11.6 in.) 1.37 m (4 ft 5.5 in.) (4 ft 5.9 in.) SEE FIGURE 2.2 FOR HEIGHT ABOVE 0.87 m 0.78 m GROUND 0.90 m (2 ft 10 in.) (2 ft 6.7 in.) (2 ft 11.4 in.) 1.10 m 0.99 m 0.61 m (3 ft 7.3 in.) (3 ft 3 in.) 0.63 m (2 ft 0 in.) (2 ft 0.8 in.) 0.75 m 0.63 m (2 ft 6.7 in.) (2 ft 0.8 in.) NOTE: FOR DIMENSIONS OF ALL DOORS, CONSIDER THAT AIRCRAFT IS IN OPERATION, THAT IS, EQUIPPED WITH DOOR LININGS AND DOOR SURROUNDS. EM170APM020008C.DGN Door Dimensions Figure 2.6 EFFECTIVITY: ALL Section 2 Page 2-14 Jun 29/06 w-apm1346
