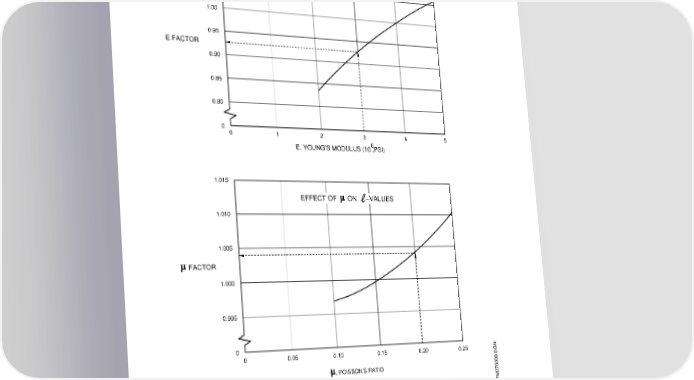

AIRPORT PLANNING MANUAL 1.10 EFFECT OF E ON −VALUES 1.05 1.00 0.95 E FACTOR 0.90 0.85 0.80 0 012345 6 E, YOUNG’S MODULUS (10 ,PSI) 1.015 EFFECT OF ON −VALUES 1.010 1.005 FACTOR 1.000 0.995 0 0 0.05 0.10 0.15 0.20 0.25 , POISSON’S RATIO NOTE: BOTH CURVES ON THIS PAGE ARE USED TO ADJUST THE −VALUES. EM170APM070008.DGN Radius of Relative Stiffness (other values) Figure 7.11 EFFECTIVITY: ALL Section 7 Page 7-16 Dec08/03 b-apm1346
