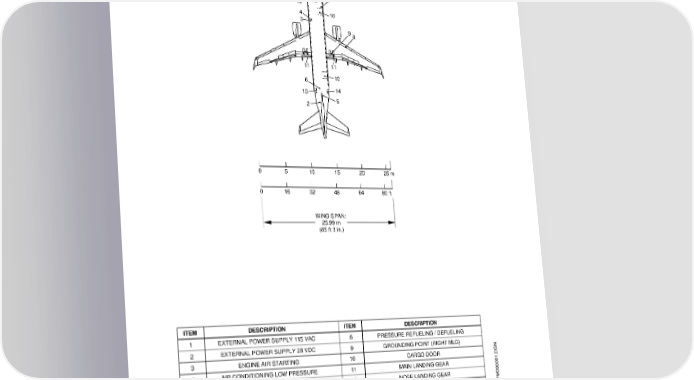

AIRPORT PLANNING MANUAL 1 14 12 7 13 4 10 3 9 8 11 11 6 10 13 14 2 5 0 5 10 15 20 25 m 01632 64 48 80 ft WING SPAN: 25.99 m (85 ft 3 in.) ITEM DESCRIPTION ITEM DESCRIPTION 1 EXTERNAL POWER SUPPLY 115 VAC 8 PRESSURE REFUELING / DEFUELING 2 EXTERNAL POWER SUPPLY 28 VDC 9 GROUNDING POINT (RIGHT MLG) 3 ENGINE AIR STARTING 10 CARGO DOOR 4 AIR CONDITIONING LOW PRESSURE 11 MAIN LANDING GEAR 5 WASTE SERVICING PANEL 12 NOSE LANDING GEAR 6 POTABLE WATER SERVICING PANEL 13 PASSENGER DOOR 7 OXYGEN REFILL / REPLACE BOTTLE 14 SERVICE DOOR EM170APM090001.DGN Scale: 1 Inch Equals 32 Feet Figure 9.1 EFFECTIVITY: ALL Section 9 Page 9-2 Dec08/03 w-apm1346
