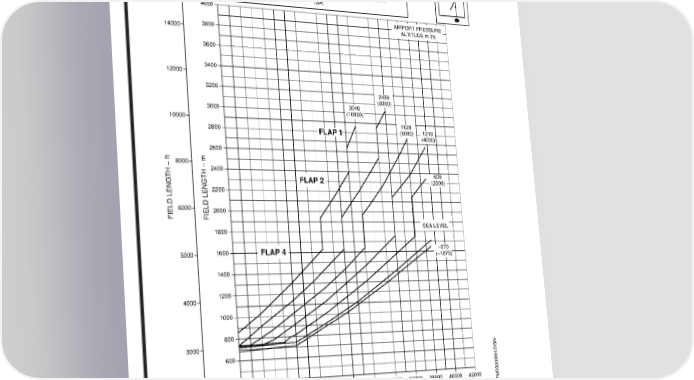

AIRPORT PLANNING MANUAL TAKEOFF FIELD LENGTH CF 34−8E5 ENGINE@T/O−1 MODE ATTCS: ON / ECS: OFF DRY, SMOOTH, HARD PAVED AND LEVEL RUNWAY ISA 4000 AIRPORT PRESSURE 3800 ALTITUDE m (ft) 14000 3600 12000 3400 3200 2438 (8000) 3000 3048 (10000) 10000 1829 2800 FLAP 1 (6000) 1219 (4000) 2600 8000 2400 609 FLAP 2 (2000) 2200 6000 2000 FIELD LENGTH − ftFIELD LENGTH − m 1800 SEA LEVEL 5000 1600 FLAP 4FLAP 4 −570 (−1870) 1400 4000 1200 1000 800 3000 600 400 20000 22000 24000 26000 28000 30000 32000 34000 36000 38000 40000 42000 WEIGHT − kg 45000 49000 53000 57000 61000 65000 69000 73000 77000 81000 85000 EM170APM030009H.DGN WEIGHT − lb Takeoff Field Lengths - ISA Conditions Figure 3.5 EFFECTIVITY: ALL Section 3 Page 3-8 Oct 07/14 w-apm1346
