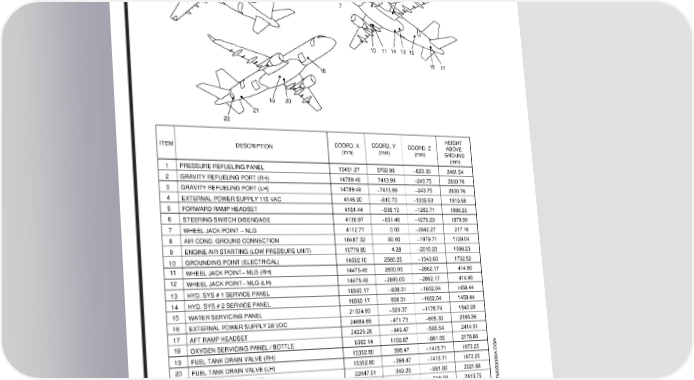

AIRPORT PLANNING MANUAL 1 2 4 5 8 9 12 6 3 7 10 11 14 13 15 16 17 18 19 20 21 22 COORD. Y HEIGHT ITEM DESCRIPTION COORD. X (mm) COORD. Z ABOVE (mm) (mm) GROUND (mm) 1 PRESSURE REFUELING PANEL 13491.27 5702.96 −623.30 2461.54 2 GRAVITY REFUELING PORT (RH) 14789.49 7413.99 −243.75 2830.76 GRAVITY REFUELING PORT (LH) 14789.49 −7413.99 −243.75 2830.76 3 4 EXTERNAL POWER SUPPLY 115 VAC 4146.90 −810.70 −1339.53 1819.58 5 FORWARD RAMP HEADSET 4164.44 −936.13 −1262.71 1896.25 6 STEERING SWITCH DISENGAGE 4136.97 −951.46 −1279.29 1879.90 7 WHEEL JACK POINT − NLG 4112.77 0.00 −2942.27 217.16 8 AIR COND. GROUND CONNECTION 10487.32 80.00 −1979.71 1129.04 9 ENGINE AIR STARTING (LOW PRESSURE UNIT) 10778.80 4.28 −2010.20 1096.23 10 GROUNDING POINT (ELECTRICAL) 14592.10 2560.25 −1343.60 1732.52 11 WHEEL JACK POINT− MLG (RH) 14475.49 2600.00 −2662.17 414.90 12 WHEEL JACK POINT− MLG (LH) 14475.49 −2600.00 −2662.17 414.90 13 HYD. SYS # 1 SERVICE PANEL 16560.17 −808.01 −1602.04 1458.44 14 HYD. SYS # 2 SERVICE PANEL 16560.17 808.01 −1602.04 1458.44 15 WATER SERVICING PANEL 21524.83 −329.37 −1178.74 1842.28 16 EXTERNAL POWER SUPPLY 28 VDC 24084.65 −471.73 −605.30 2395.36 17 AFT RAMP HEADSET 24225.26 −449.47 −585.54 2414.01 18 OXYGEN SERVICING PANEL / BOTTLE 6562.14 1159.87 −961.05 2178.86 19 FUEL TANK DRAIN VALVE (RH) 13352.80 398.47 −1413.71 1672.25 20 FUEL TANK DRAIN VALVE (LH) 13352.80 −398.47 −1413.71 1672.25 21 WASTE SERVICING PANEL 22447.01 349.20 −991.80 2021.88 22 HYD. SYS # 3 SERVICE PANEL 24061.86 519.15 −590.09 2410.75 NOTE: THE GROUND CLEARANCES IN THE TABLE REFER TO THE AIRCRAFT WITH THE MINIMUM EM170APM050006A.DGN OPERATING WEIGHT (MOW) = 21800 kg (CG REAR 27.0% CMA) Ground Servicing Connections Figure 5.5 EFFECTIVITY: ALL Section 5 Page 5-8 May11/07 w-apm1346
