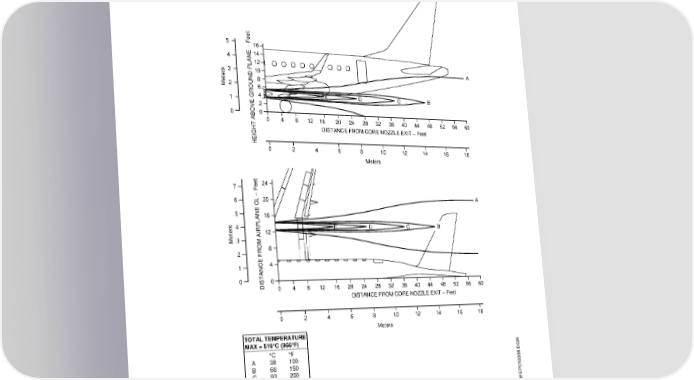

AIRPORT PLANNING MANUAL GROUND IDLE, SEA LEVEL, Tamb = ISA +16.7°C, FNIN1 = 3785 N (851 lbf) 5 16 4 14 12 A 3 10 2 8 Meters 6 1 4 E D C B 2 0 0 04812162024283236404448525660 DISTANCE FROM CORE NOZZLE EXIT − Feet HEIGHT ABOVE GROUND PLANE − Feet 024681012141618 Meters 7 24 6 20 A 5 16 4 12 E D C B Meters3 2 8 1 4 0 0 DISTANCE FROM AIRPLANE CL − Feet04812162024283236404448525660 DISTANCE FROM CORE NOZZLE EXIT − Feet 024681012141618 Meters TOTAL TEMPERATURE MAX = 519°C (966°F) °C °F A 38 100 B 66 150 C 93 200 D 204 400 E 582 900 NOTE: EXHAUST TEMPERATURE CONTOURS INCLUDE WORST CASE 20 kn HEADWIND. EM170MFEP010008.DGN Jet Wake Temperature Profile - Ground Idle Figure 6.4 EFFECTIVITY: ALL Section 6 Page 6-5 Dec08/03 w-apm1346
