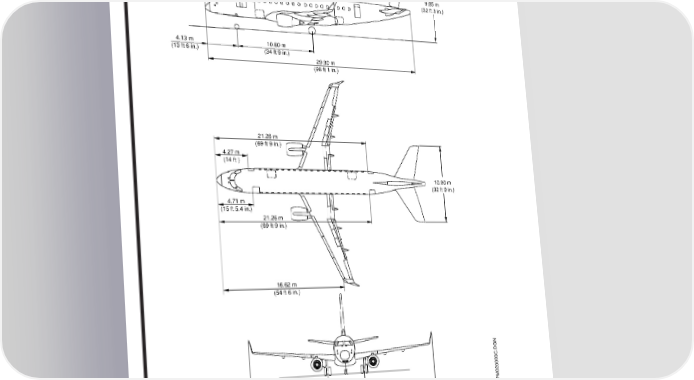

AIRPORT PLANNING MANUAL 18.23 m (59 ft 9.7 in.) 6.82 m (22 ft 4.5 in.) 9.85 m (32 ft 3 in.) 4.13 m 10.60 m (13 ft 6 in.) (34 ft 9 in.) 29.90 m (98 ft 1 in.) 21.26 m (69 ft 9 in.) 4.27 m (14 ft ) 10.00 m (32 ft 9 in.) 4.71 m (15 ft 5.4 in.) 21.26 m (69 ft 9 in.) 16.62 m (54 ft 6 in.) 5.20 m (17 ft) 26.00 m (85 ft 4 in.) EM170APM020003C.DGN General Aircraft Dimensions Figure 2.1 EFFECTIVITY: ALL Section 2 Page 2-4 May11/07 w-apm1346
