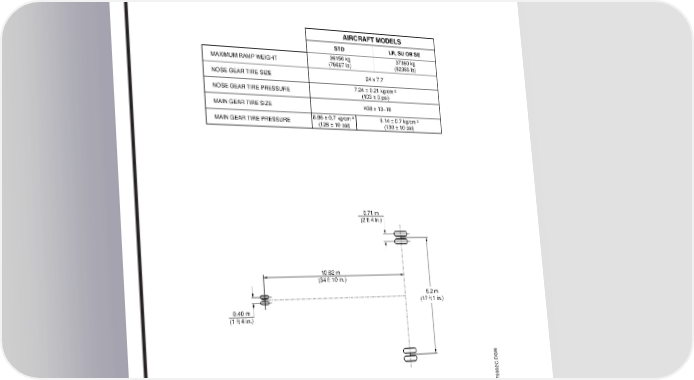

AIRPORT PLANNING MANUAL 7.2. FOOTPRINT AIRCRAFT MODELS STD LR, SU OR SE MAXIMUM RAMP WEIGHT 36150 kg 37360 kg (79697 lb) (82365 lb) NOSE GEAR TIRE SIZE 24 x 7.7 NOSE GEAR TIRE PRESSURE 7.24 ± 0.21 kg/cm ² (103 ± 3 psi) MAIN GEAR TIRE SIZE H38 x 13−18 MAIN GEAR TIRE PRESSURE 8.86 ± 0.7 kg/cm ² 9.14 ± 0.7 kg/cm ² (126 ± 10 psi) (130 ± 10 psi) 0.71 m (2 ft 4 in.) 10.62 m (34 ft 10 in.) 5.2 m (17 ft 1 in.) 0.40 m (1 ft 4 in.) EM170APM070002C.DGN Footprint Figure 7.1 EFFECTIVITY: ALL Section 7 Page 7-2 Jul 01/05 w-apm1346
