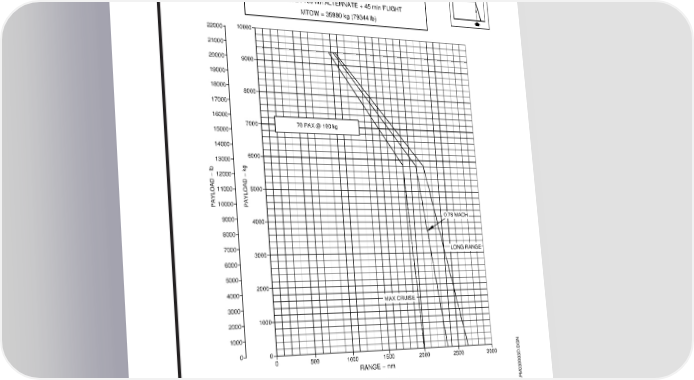

AIRPORT PLANNING MANUAL PAYLOAD VS RANGE CF34 − 8E5A1 & − 8E5 ENGINES FLIGHT LEVEL 350 ISA RESERVE : 100 nm ALTERNATE + 45 min FLIGHT MTOW = 35990 kg (79344 lb) 22000 10000 21000 20000 9000 19000 18000 8000 17000 16000 7000 70 PAX @ 100 kg 15000 14000 13000 6000 12000 11000 5000 PAYLOAD − lb10000PAYLOAD − kg 9000 0.78 MACH 4000 8000 7000 LONG RANGE 3000 6000 5000 2000 4000 MAX CRUISE 3000 2000 1000 1000 0 0 0 500 1000 1500 2000 2500 3000 RANGE − nm NOTES: MAX TAKEOFF WEIGHT 35990 kg (79344 lb) MAX ZERO FUEL WEIGHT 30140 kg (66447 lb) BASIC OPERATING WEIGHT 20736 kg (45715 lb) MAX USABLE FUEL 9428 Kg (20785 lb) EM170APM030003D.DGN Payload x Range - ISA Conditions Figure 3.1 EFFECTIVITY: EMBRAER 170 STD ACFT Section 3 MODEL Page 3-3 Oct 31/12 w-apm1346
