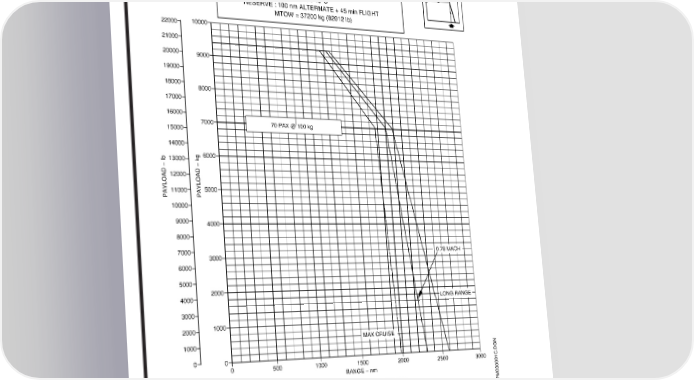

AIRPORT PLANNING MANUAL PAYLOAD VS RANGE CF34 − 8E5A1 & − 8E5 ENGINES FLIGHT LEVEL 350 ISA + 10°C RESERVE : 100 nm ALTERNATE + 45 min FLIGHT MTOW = 37200 kg (82012 lb) 22000 10000 21000 20000 9000 19000 18000 8000 17000 16000 7000 70 PAX @ 100 kg 15000 14000 13000 6000 12000 11000 PAYLOAD − kg5000 PAYLOAD − lb 10000 9000 4000 8000 7000 0.78 MACH 3000 6000 5000 2000 4000 LONG RANGE 3000 2000 1000 1000 MAX CRUISE 0 0 0 500 1000 1500 2000 2500 3000 NOTES: RANGE − nm MAX TAKEOFF WEIGHT 37200 kg (82012 lb) MAX ZERO FUEL WEIGHT 30140 kg (66447 lb) BASIC OPERATING WEIGHT 20736 kg (45715 lb) MAX USABLE FUEL 9428 Kg (20785 lb) EM170APM030001C.DGN Payload x Range - ISA + 10 °C Conditions Figure 3.4 EFFECTIVITY: EMBRAER 170 LRACFT MODEL Section 3 Page 3-6 Oct 31/12 w-apm1346
