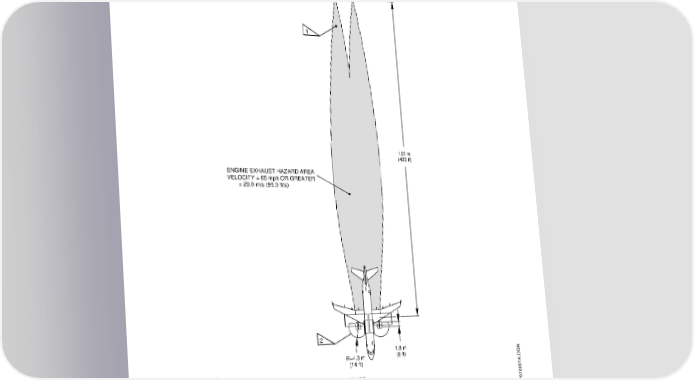

AIRPORT PLANNING MANUAL 6.3. HAZARDAREAS TAKEOFF POWER, SEA LEVEL, Tamb = ISA +16.7° C, FNIN1 = 63685 N (14317 lbf) 1 132 m (433 ft) ENGINE EXHAUST HAZARD AREA VELOCITY = 65 mph OR GREATER = 29.0 m/s (95.3 ft/s) 2 1.8 m R=4.3 m (6 ft) (14 ft) NOTE: NO ACCESS TO ENGINE ACCESSORIES AT TAKEOFF POWER. 1 EXHAUST HAZARD AREA − CONDITION: 20 kn HEADWIND WITH GROUND EFFECTS. 2 INLET HAZARD AREA − CONDITION: 20 kn HEADWIND/CROSSWIND BASED ON 12.2 m/s (40 ft/s) CRITICAL VELOCITY WITH 0.9 m (3 ft) CONTINGENCY FACTOR. EM170MFEP010001A.DGN Hazard Areas - Takeoff Power Figure 6.7 EFFECTIVITY: ALL Section 6 Page 6-9 Jan 09/06 w-apm1346
